出色穩定性能的5032mm石英晶體振蕩器X1G004451000200，伴隨著市場對于晶振的需求以日劇增，有源晶振成為當下市場的主流產品，而我們接觸最多的電子產品，就手機藍牙，電腦，智能家居等產品為例，手機藍牙通常需要一顆高頻晶振及一顆工作頻率為32.768KHZ的低頻晶振。高頻晶振則由最初的5032mm逐步發展至3225mm貼片晶振以及2520mm貼片晶振，從最初的大體積到小體積的變化，這些都經過一大變革。

Product Number	進口晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G004261010200	SG5032VAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261010700	SG5032VAN	153.600000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261011400	SG5032VAN	78.125000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261011900	SG5032VAN	120.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012100	SG5032VAN	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012500	SG5032VAN	148.351600 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012600	SG5032VAN	133.333300 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012800	SG5032VAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012900	SG5032VAN	135.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013100	SG5032VAN	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013300	SG5032VAN	230.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261013500	SG5032VAN	148.351600 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013600	SG5032VAN	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013800	SG5032VAN	148.351600 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-20 ppm
X1G004261014100	SG5032VAN	161.132812 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261014300	SG5032VAN	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004451000100	SG5032CAN	12.288000 MHz	5.00 x 3.20 x 1.10 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004451000200	SG5032CAN	16.000000 MHz	5.00 x 3.20 x 1.10 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004451000300	SG5032CAN	24.000000 MHz	5.00 x 3.20 x 1.10 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004451000400	SG5032CAN	25.000000 MHz	5.00 x 3.20 x 1.10 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004451000500	SG5032CAN	27.000000 MHz	5.00 x 3.20 x 1.10 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C	+/-50 ppm

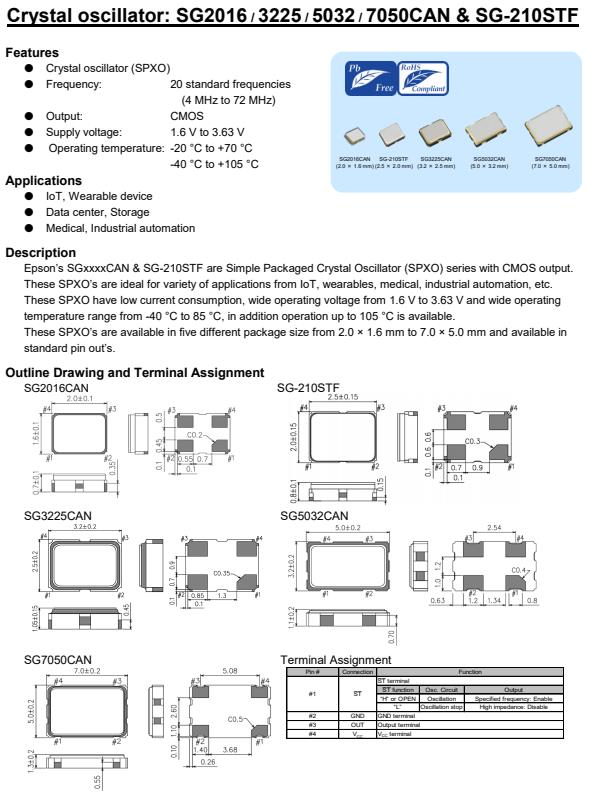

出色穩定性能的5032mm石英晶體振蕩器X1G004451000200，愛普生的這款SG5032CAN晶振，石英晶體振蕩器，編碼X1G004451000200，頻率16.000000兆赫，輸出WaveCMOS，供電電壓1.62至3.63 V，尺寸(長×寬×高)5.00 × 3.20 × 1.10毫米，工作溫度-40到+85°C，頻率公差±50ppm，額外的OptionsN /OSC TypeClock OSC,具有非常高的穩定性,非常適用于對高精密的手機智能家具，手機通信設備設計,SG5032CAN晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為通信設備智能家具時鐘的最佳之選,此外SG5032CAN晶振金屬外殼封裝使得產品在封裝時能發揮比陶瓷諧振器外殼更好的耐沖擊性.
