智能電表時鐘模塊TCXO晶體振蕩器X1G004211003100，愛普生通過應用其多年來開發的高效、緊湊和精密技術來解決挑戰，尋求推進工業前沿并推動循環經濟。這些技術可以節省能源、實現更小的產品并提高準確性和精度，使愛普生晶振能夠為可持續發展目標 (SDG) 做出貢獻，從而為所有人帶來更美好、更可持續的未來。


智能電表時鐘模塊TCXO晶體振蕩器X1G004211003100，愛普生是全球技術領導者，致力于通過利用其高效、緊湊和精確的技術和數字技術來連接人、物和信息，共同創造可持續發展和豐富社區。該公司專注有源晶振，專注于通過家庭和辦公室印刷、商業和工業印刷、制造、視覺和生活方式的創新來解決社會問題。到2050年，愛普生將實現碳負排放，并消除對石油和金屬等可枯竭地下資源的使用。

Product Number	Model	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005421032127	TG2520SMN	27.600000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421032227	TG2520SMN	50.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421032427	TG2520SMN	10.000000 MHz	2.50 x 2.00 x 0.80 mm	2.260 to 3.465 V	+/-1.5 ppm	40 to +85 °C	+/-0.50 ppm
X1G004211000100	TG-5006CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004211000200	TG-5006CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004211000300	TG-5006CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004211000400	TG-5006CG	16.368000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004211000500	TG-5006CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004211000600	TG-5006CG	16.367667 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-1.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004211000800	TG-5006CG	16.369000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004211001100	TG-5006CG	38.400000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004211001500	TG-5006CG	16.369000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004211001600	TG-5006CG	19.200000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004211002700	TG-5006CG	30.000000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004211003100	TG-5006CG	24.000000 MHz	2.50 x 2.00 x 0.80 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004211003300	TG-5006CG	49.999800 MHz	2.50 x 2.00 x 0.80 mm	1.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-0.80 ppm
X1G004211003400	TG-5006CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	2.520 to 3.080 V	+/-2.0 ppm	-40 to +85 °C	+/-0.50 ppm
X1G004211003700	TG-5006CG	24.000000 MHz	2.50 x 2.00 x 0.80 mm	1.700 to 3.465 V	+/-1.5 ppm	-30 to +85 °C	+/-0.50 ppm

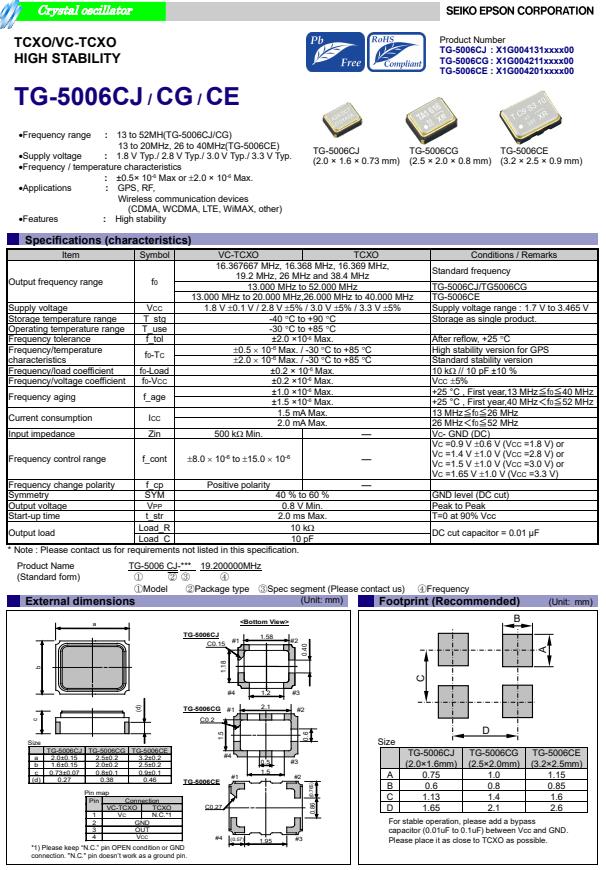

愛普生公司推出了TG-5006CG晶振，TCXO晶體振蕩器編碼X1G004211003100，頻率24.000000兆赫，輸出剪波正弦波，電源電壓2.85至3.15 V，電源電壓(典型)3.000 V，尺寸(LxWxH)2.5 x 2.0 x 0.8 mm，工作溫度-30至+85°C，頻率公差+/- 2.0 ppm，頻率范圍:13至52MH(TG-5006CJ/CG)，13至20MHz, 26至40MHz(TG-5006CE)，電源電壓:1.8 V/ 2.8 V類型。/ 3.0 V類型。/ 3.3 V類型。頻率/溫度特性±0.5× 10-6 Max或±2.0 × 10-6 Max，應用:GPS，射頻，無線通信設備，智能電表時鐘模塊(CDMA, WCDMA, LTE, WiMAX，其他)，特點:穩定性高.
