Microchip晶振編碼DSC1018DE1-125.0000T是一款CMOS輸出的OSC振蕩器,用于便攜式電子，Our multiple-output and highly flexible quartz- and MEMS-based PureSilicon™ oscillators are available in a variety of industry-standard footprints to meet the requirements of your low-power or low-jitter applications. Use our Clockworks® Configurator and Sampling Tool to easily customize your oscillator to any combination of frequency, temperature, ppm and package size to suit the requirements of your application and then order samples from within the tool.
我們的多路輸出、高度靈活的基于石英和MEMS的PureSilicon振蕩器提供各種工業標準尺寸，以滿足您的低功耗或低抖動應用的要求。使用我們的時鐘®配置器和采樣工具，可輕松定制您的SPXO振蕩器，使其具有任意頻率、溫度、ppm和封裝尺寸組合，以滿足您的應用要求，然后從工具中訂購樣品.

原廠代碼	歐美晶振品牌	型號	類型	頻率	電壓
DSC1001CE1-125.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	125MHz	1.8 V ~ 3.3 V
DSC1121DI5-044.7360	Microchip晶振	DSC1121	MEMS (Silicon)	44.736MHz	2.25 V ~ 3.6 V
DSC1001BI1-038.4000	Microchip晶振	DSC1001	MEMS (Silicon)	38.4MHz	1.8 V ~ 3.3 V
DSC1001BI1-038.4000T	Microchip晶振	DSC1001	MEMS (Silicon)	38.4MHz	1.8 V ~ 3.3 V
DSC1001DL2-049.5000T	Microchip晶振	DSC1001	MEMS (Silicon)	49.5MHz	1.8 V ~ 3.3 V
DSC1001CI2-033.3330T	Microchip晶振	DSC1001	MEMS (Silicon)	33.333MHz	1.8 V ~ 3.3 V
DSC1001CI2-001.9512T	Microchip晶振	DSC1001	MEMS (Silicon)	1.9512MHz	1.7 V ~ 3.6 V
DSC1033CC2-024.0000	Microchip晶振	DSC1033	MEMS (Silicon)	24MHz	3.3V
DSC1033CC2-025.0000	Microchip晶振	DSC1033	MEMS (Silicon)	25MHz	3.3V
DSC1001CC1-076.0686T	Microchip晶振	DSC1001	MEMS (Silicon)	76.0686MHz	1.8 V ~ 3.3 V
DSC1001CI4-002.0480T	Microchip晶振	DSC1001	MEMS (Silicon)	2.048MHz	1.8 V ~ 3.3 V
DSC1001CI4-049.1520T	Microchip晶振	DSC1001	MEMS (Silicon)	49.152MHz	1.8 V ~ 3.3 V
DSC1001CI4-054.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	54MHz	1.8 V ~ 3.3 V
DSC1001DE1-075.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	75MHz	1.8 V ~ 3.3 V
DSC1018BC1-054.0000T	Microchip晶振	DSC1018	MEMS (Silicon)	54MHz	1.8V
DSC1001DE1-074.2500	Microchip晶振	DSC1001	MEMS (Silicon)	74.25MHz	1.8 V ~ 3.3 V
DSC1025BC2-133.0000	Microchip晶振	DSC1025	MEMS (Silicon)	133MHz	2.5V
DSC1001DC5-038.8800T	Microchip晶振	DSC1001	MEMS (Silicon)	38.88MHz	1.8 V ~ 3.3 V
DSC1001DE1-125.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	125MHz	1.8 V ~ 3.3 V
DSC1004CI2-033.0000T	Microchip晶振	DSC1004	MEMS (Silicon)	33MHz	1.8 ~ 3.3V
DSC1004CI2-054.0000T	Microchip晶振	DSC1004	MEMS (Silicon)	54MHz	1.8 ~ 3.3V
DSC1033CC2-012.0000T	Microchip晶振	DSC1033	MEMS (Silicon)	12MHz	3.3V
DSC1033DC2-012.0000T	Microchip晶振	DSC1033	MEMS (Silicon)	12MHz	3.3V
DSC1001CC2-100.0000	Microchip晶振	DSC1001	MEMS (Silicon)	100MHz	1.8 V ~ 3.3 V
DSC1001CC2-125.0000	Microchip晶振	DSC1001	MEMS (Silicon)	125MHz	1.8 V ~ 3.3 V
DSC1001DC5-012.0000	Microchip晶振	DSC1001	MEMS (Silicon)	12MHz	1.8 V ~ 3.3 V
DSC1001DC5-024.5760	Microchip晶振	DSC1001	MEMS (Silicon)	24.576MHz	1.8 V ~ 3.3 V
DSC1001DC5-038.8800	Microchip晶振	DSC1001	MEMS (Silicon)	38.88MHz	1.8 V ~ 3.3 V
DSC1001DC5-040.0000	Microchip晶振	DSC1001	MEMS (Silicon)	40MHz	1.8 V ~ 3.3 V
DSC1001DE1-125.0000	Microchip晶振	DSC1001	MEMS (Silicon)	125MHz	1.8 V ~ 3.3 V
DSC1033DC2-012.0000	Microchip晶振	DSC1033	MEMS (Silicon)	12MHz	3.3V
DSC1004CI2-027.0000T	Microchip晶振	DSC1004	MEMS (Silicon)	27MHz	1.8 ~ 3.3V
DSC1018DE1-125.0000T	Microchip晶振	DSC1018	MEMS (Silicon)	125MHz	1.8V
DSC1101DL1-100.0000	Microchip晶振	DSC1101	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1018BC1-080.0000T	Microchip晶振	DSC1018	MEMS (Silicon)	80MHz	1.8V
DSC1001AE1-066.6660	Microchip晶振	DSC1001	MEMS (Silicon)	66.666MHz	1.8 V ~ 3.3 V
DSC1001AE1-066.6660T	Microchip晶振	DSC1001	MEMS (Silicon)	66.666MHz	1.8 V ~ 3.3 V
DSC1001DC5-012.8000T	Microchip晶振	DSC1001	MEMS (Silicon)	12.8MHz	1.7 V ~ 3.6 V
DSC1018BC1-100.0000T	Microchip晶振	DSC1018	MEMS (Silicon)	100MHz	1.65 V ~ 1.95V
DSC1001DL1-025.2000T	Microchip晶振	DSC1001	MEMS (Silicon)	25.2MHz	1.7 V ~ 3.6 V
DSC1121DI1-125.0000T	Microchip晶振	DSC1121	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1121CM1-027.0000	Microchip晶振	DSC1121	MEMS (Silicon)	27MHz	2.25 V ~ 3.6 V
DSC1121CM1-016.0000	Microchip晶振	DSC1121	MEMS (Silicon)	16MHz	2.25 V ~ 3.6 V
DSC1121CM1-025.0000	Microchip晶振	DSC1121	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1121CM1-026.5625	Microchip晶振	DSC1121	MEMS (Silicon)	26.5625MHz	2.25 V ~ 3.6 V
DSC1121CM1-010.0000T	Microchip晶振	DSC1121	MEMS (Silicon)	10MHz	2.25 V ~ 3.6 V
DSC1121CM1-016.0000T	Microchip晶振	DSC1121	MEMS (Silicon)	16MHz	2.25 V ~ 3.6 V
DSC1121CM1-020.0000T	Microchip晶振	DSC1121	MEMS (Silicon)	20MHz	2.25 V ~ 3.6 V
DSC1121CM1-024.0000T	Microchip晶振	DSC1121	MEMS (Silicon)	24MHz	2.25 V ~ 3.6 V
DSC1121CM1-025.0000T	Microchip晶振	DSC1121	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1121CM1-050.0000T	Microchip晶振	DSC1121	MEMS (Silicon)	50MHz	2.25 V ~ 3.6 V
DSC1003CI5-020.0000	Microchip晶振	DSC1003	MEMS (Silicon)	20MHz	1.8 ~ 3.3V
DSC1001AI2-027.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	27MHz	1.8 V ~ 3.3 V
DSC1001BI2-004.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	4MHz	1.8 V ~ 3.3 V
DSC1001BI2-010.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	10MHz	1.8 V ~ 3.3 V
DSC1001BI2-054.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	54MHz	1.8 V ~ 3.3 V
DSC1001CL1-024.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	24MHz	1.8 V ~ 3.3 V
DSC1001CL1-030.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	30MHz	1.8 V ~ 3.3 V
DSC1001CL1-033.0000T	Microchip晶振	DSC1001	MEMS (Silicon)	33MHz	1.8 V ~ 3.3 V
DSC1003CL1-048.0000T	Microchip晶振	DSC1003	MEMS (Silicon)	48MHz	1.8 ~ 3.3V
DSC1033CE1-120.0000T	Microchip晶振	DSC1033	MEMS (Silicon)	120MHz	3.3V

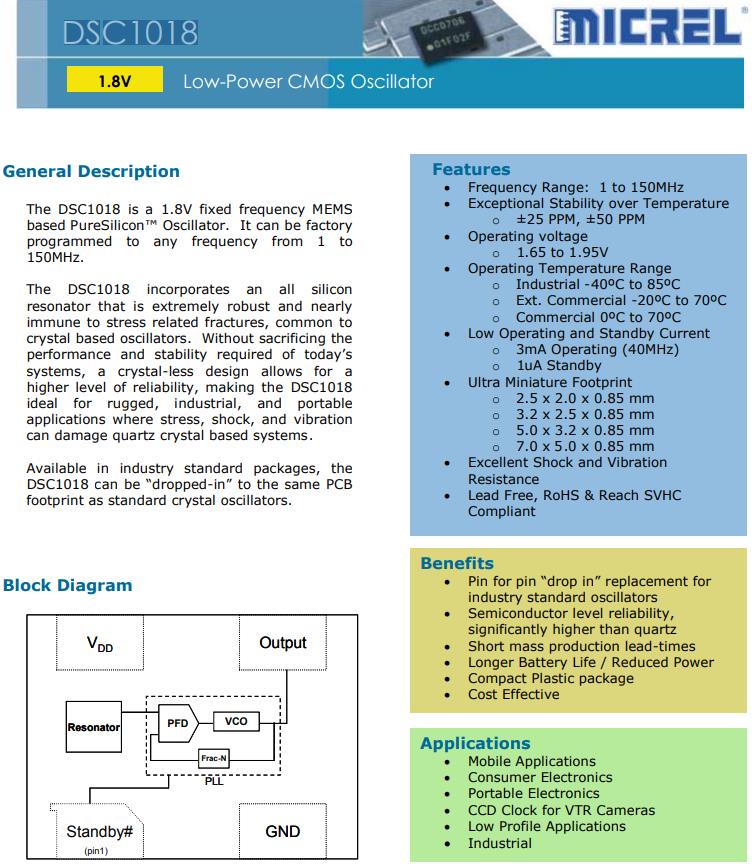

編碼DSC1018DE1-125.0000T，DSC1018是一款1.8V定頻MEMS基于PureSilicon™振蕩器可以是工廠編程到任意頻率從1到150mhz。DSC1018采用全硅諧振器是非常堅固和接近對壓力相關骨折免疫，常見的有源晶體振蕩器。在不犧牲性能和穩定性要求今天系統，一個無晶體的設計允許更高水平的可靠性，使DSC1018理想的堅固，工業和便攜式應用于應力，沖擊和振動可以破壞石英晶體系統。可在行業標準軟件包中使用DSC1018可以“插入”到同一PCB上作為標準晶體振蕩器的足跡。

有源晶振特性頻率范圍:1~150MHz卓越的溫度穩定性±25ppm，±50ppm，工作電壓1.65~1.95V，工作溫度范圍，工業-40ºC至85ºC，-20ºC至70ºC，0℃至70℃商用，低工作和待機電流，3mA工作(40MHz)，1uA備用，超微型足跡，2.5x2.0x0.85mm，3.2x2.5x0.85mm，5.0x3.2x0.85mm，7.0x5.0x0.85mm卓越的抗沖擊和振動電阻，無鉛。應用程序：移動應用，消費電子產品，便攜式電子產品，用于錄像機的CCD時鐘，低調應用，工業等領域。Microchip晶振編碼DSC1018DE1-125.0000T是一款CMOS輸出的OSC振蕩器,用于便攜式電子.
